P-Trap to S-Trap Toilet Pan Connector with Wall Support Kit — T3322
The T3322 connects a toilet’s horizontal rear outlet to a floor waste pipe through a 90-degree downward bend. It provides a practical connection option when a P-trap toilet needs to discharge into a floor drain. The kit includes a white connector assembly, seals at both connection ends, and wall support hardware for positioning the connector behind the pan.
Numéro d'article :
T3322Garantie :
1Commande (MOQ) :
1000Port d'expédition :
XiamenService personnalisé :
Color, Package, LOGOPRODUCT DESCRIPTION
The T3322 is a pan connector for rear-outlet toilets that connects a horizontal toilet outlet to a floor waste pipe. Its 90-degree bend redirects discharge downward, providing a connection option when the toilet outlet and bathroom drainage point face different directions.
For buyers selecting a P-trap to S-trap connector for bathroom renovations, the T3322 helps bridge this difference in layout. Suitability depends on the toilet outlet dimensions, floor waste position and available space behind the pan.

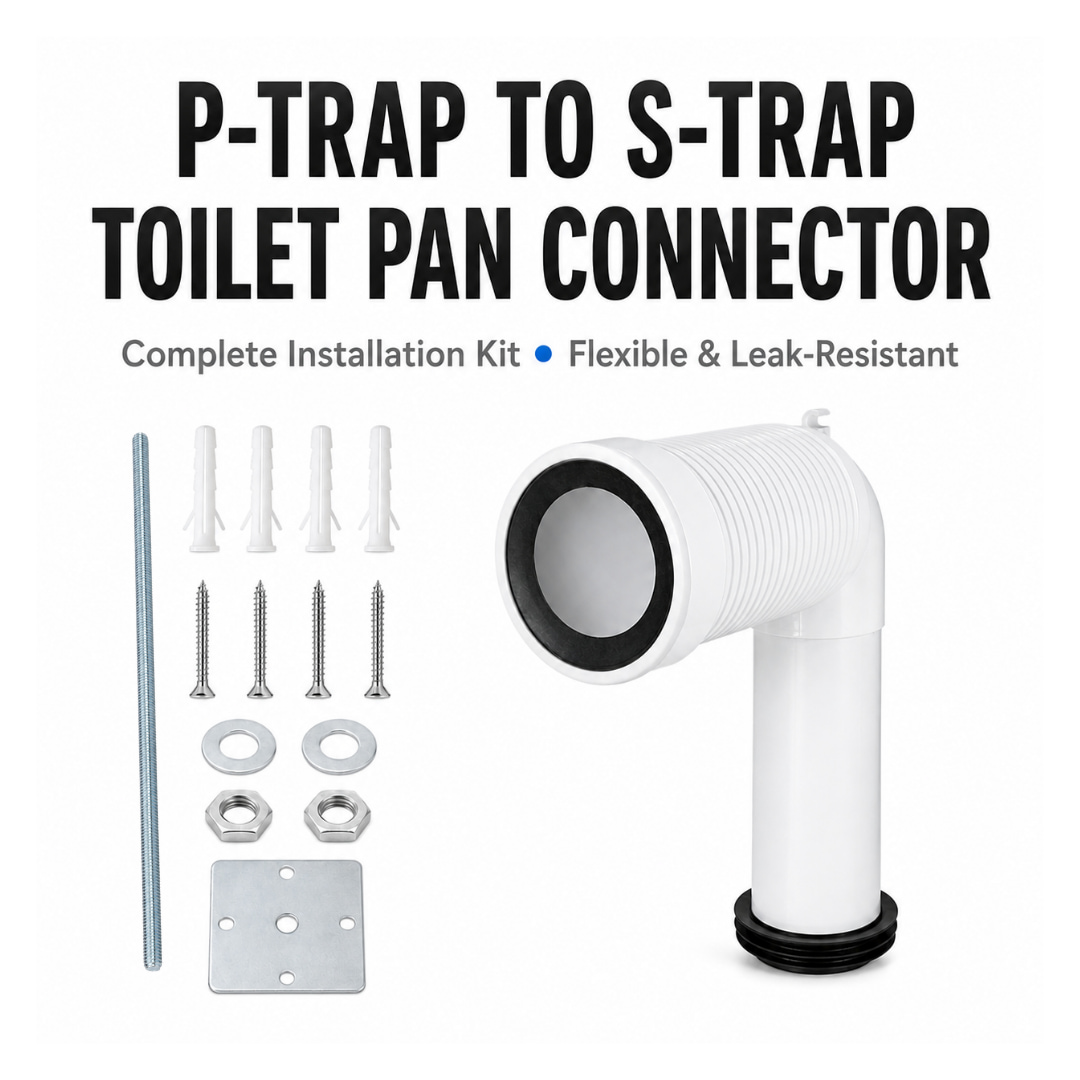

This rear-outlet to floor-waste toilet connector combines a ribbed horizontal section with a downward outlet and black seals at both connection ends. The supplied metal mounting plate and threaded rod support the connector from the wall, helping maintain its position behind the toilet.

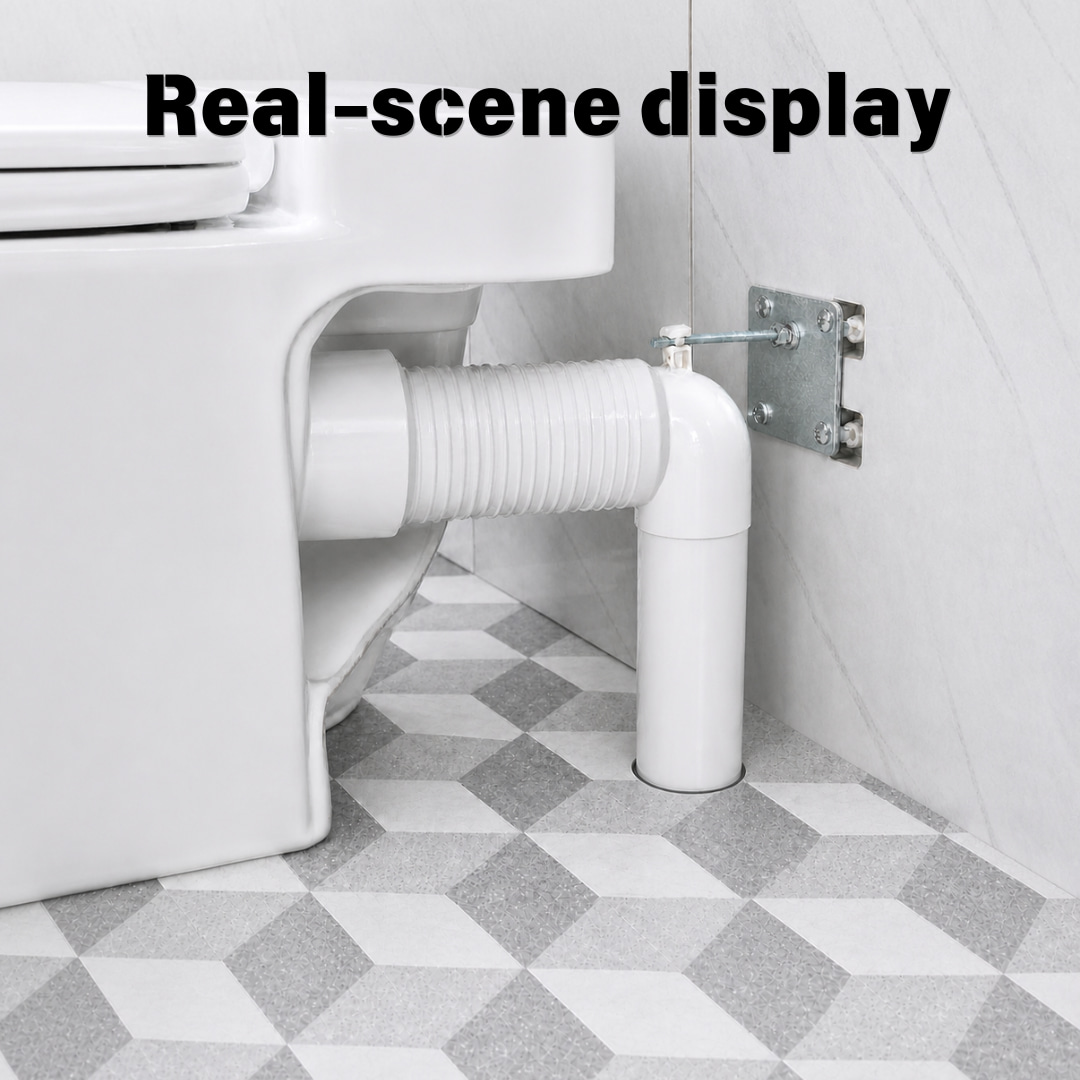

The installation scene below shows the horizontal connection from the toilet, the downward route into the floor and the wall support arrangement.
For installers choosing a toilet pan connector kit for renovation projects, the supplied support hardware makes it easier to prepare and check the required components. The support assembly holds the connector in position; the toilet requires its own appropriate fixing system.
Check both the connection sizes and installation layout before ordering.

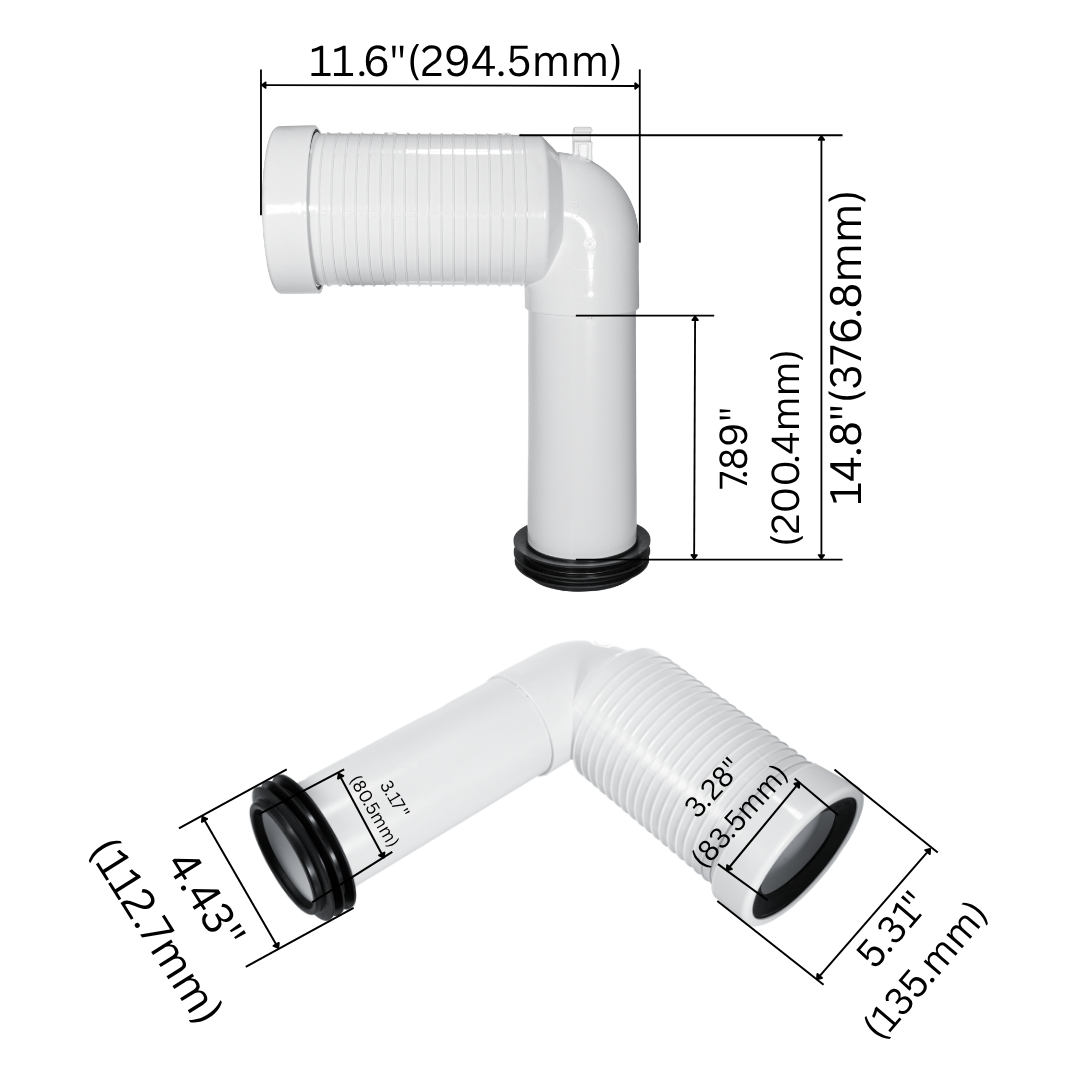

| Item | T3322 specification |
| Connection arrangement | Horizontal toilet outlet to vertical floor waste |
| Bend | 90 degrees |
| Body color | White |
| Overall horizontal dimension shown | Approx. 294.5 mm |
| Overall vertical dimension shown | Approx. 376.8 mm |
| Lower straight section shown | Approx. 200.4 mm |
| Pan-side opening dimension shown | Approx. 83.5 mm |
| Pan-side collar outside dimension shown | Approx. 135 mm |
| Lower pipe outside dimension shown | Approx. 80.5 mm |
| Lower seal outside dimension shown | Approx. 112.7 mm |

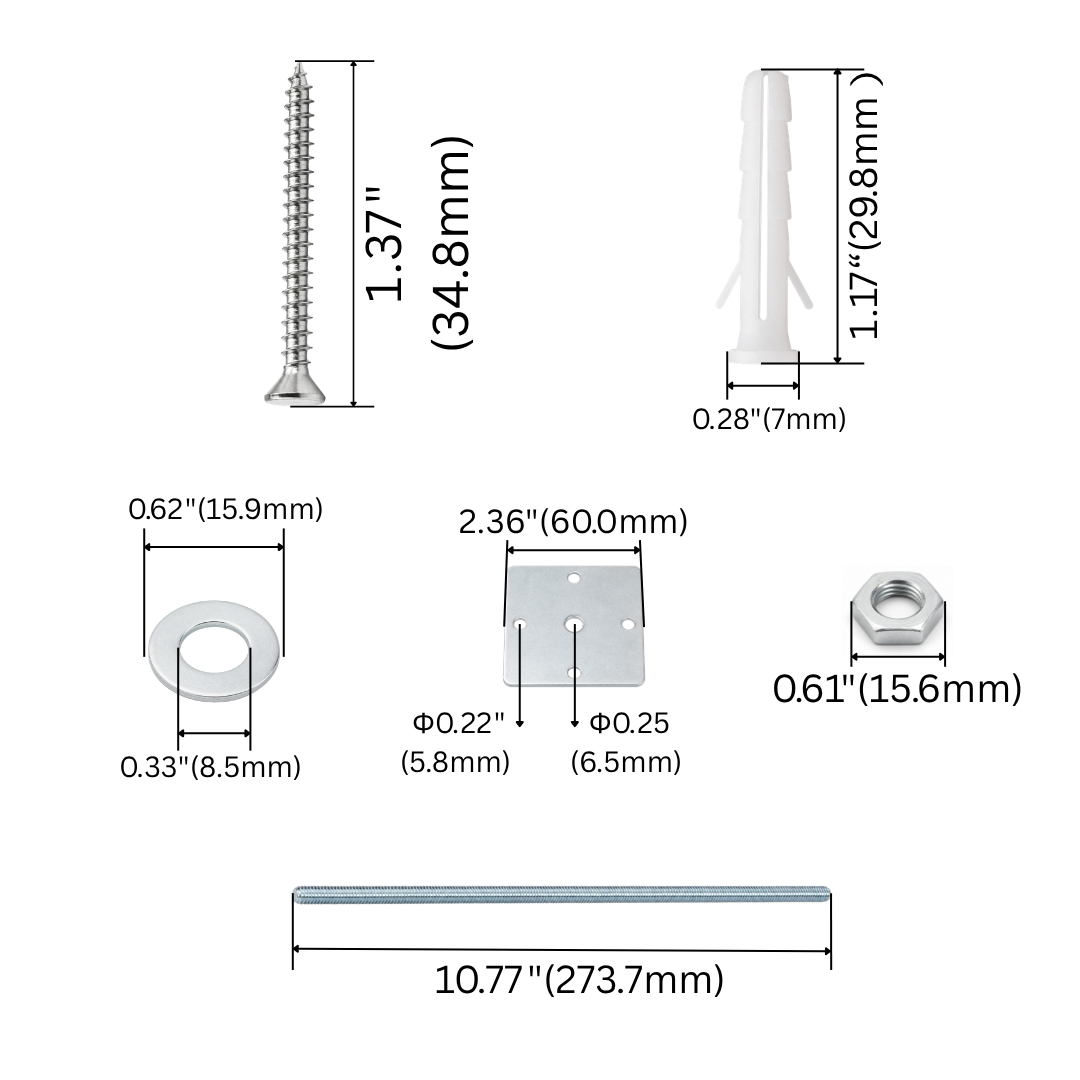

| Support rod length | Approx. 273.7 mm |
| Mounting plate width | Approx. 60 mm |
These measurements follow the supplied product drawings. Opening and seal dimensions are reference measurements and do not establish a universal compatibility range.
Before selecting this toilet waste connector for floor-drain installations, confirm:
Toilet outlet outside diameter and centre height above the finished floor.
Floor waste internal diameter.
Distance from the finished wall to the centre of the floor waste.
Available clearance behind the toilet.
The overall horizontal dimension is different from the wall-to-waste set-out. Any required cutting or length adjustment should be confirmed against the product instructions before installation.

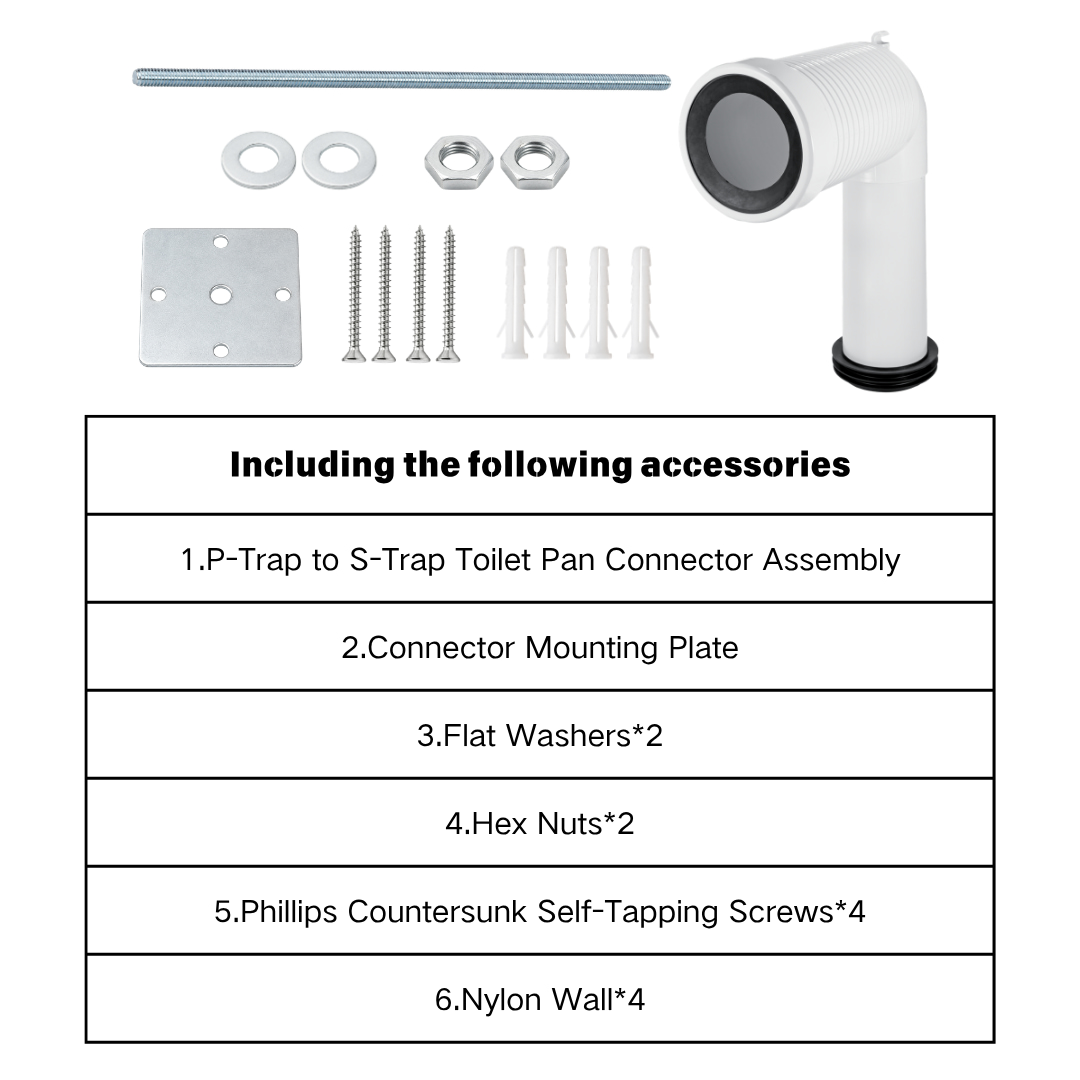

| Component | Quantity |
| Pan connector assembly with end seals | 1 |
| Metal mounting plate | 1 |
| Threaded support rod | 1 |
| Flat washers | 2 |
| Hex nuts | 2 |
| Countersunk screws | 4 |
| Wall plugs | 4 |
Correct alignment and seating of both sealing ends are essential to the completed connection. The installer should confirm that the supplied wall fixings suit the mounting surface and check the connections for leaks before use.

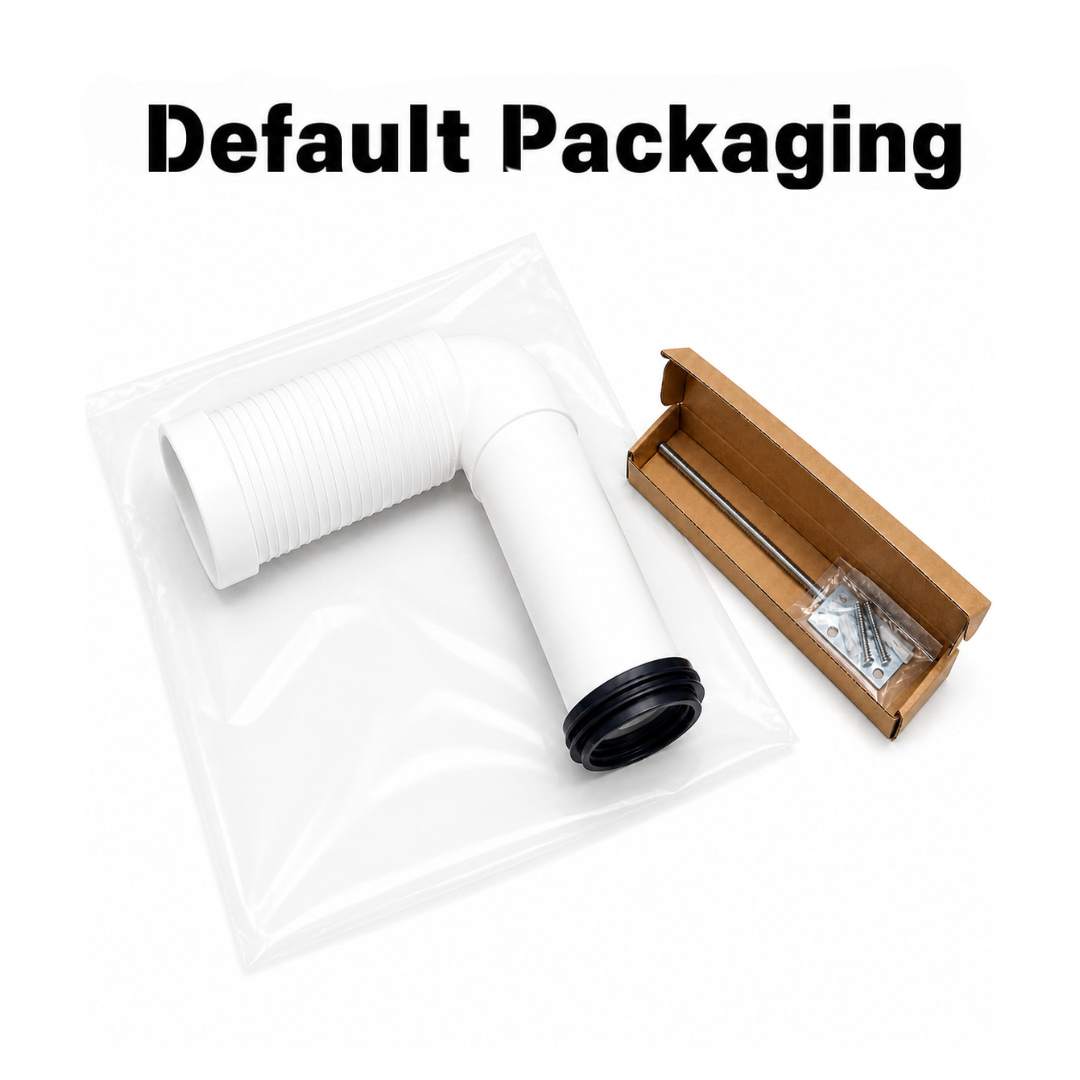

The default packaging shown places the connector in a clear bag, with the threaded rod and mounting hardware packed separately in a cardboard accessory box.
For buyers evaluating a toilet pan connector kit for sanitary ware distribution, samples provide an opportunity to check the connection dimensions, supplied hardware and packaging against the intended product range.

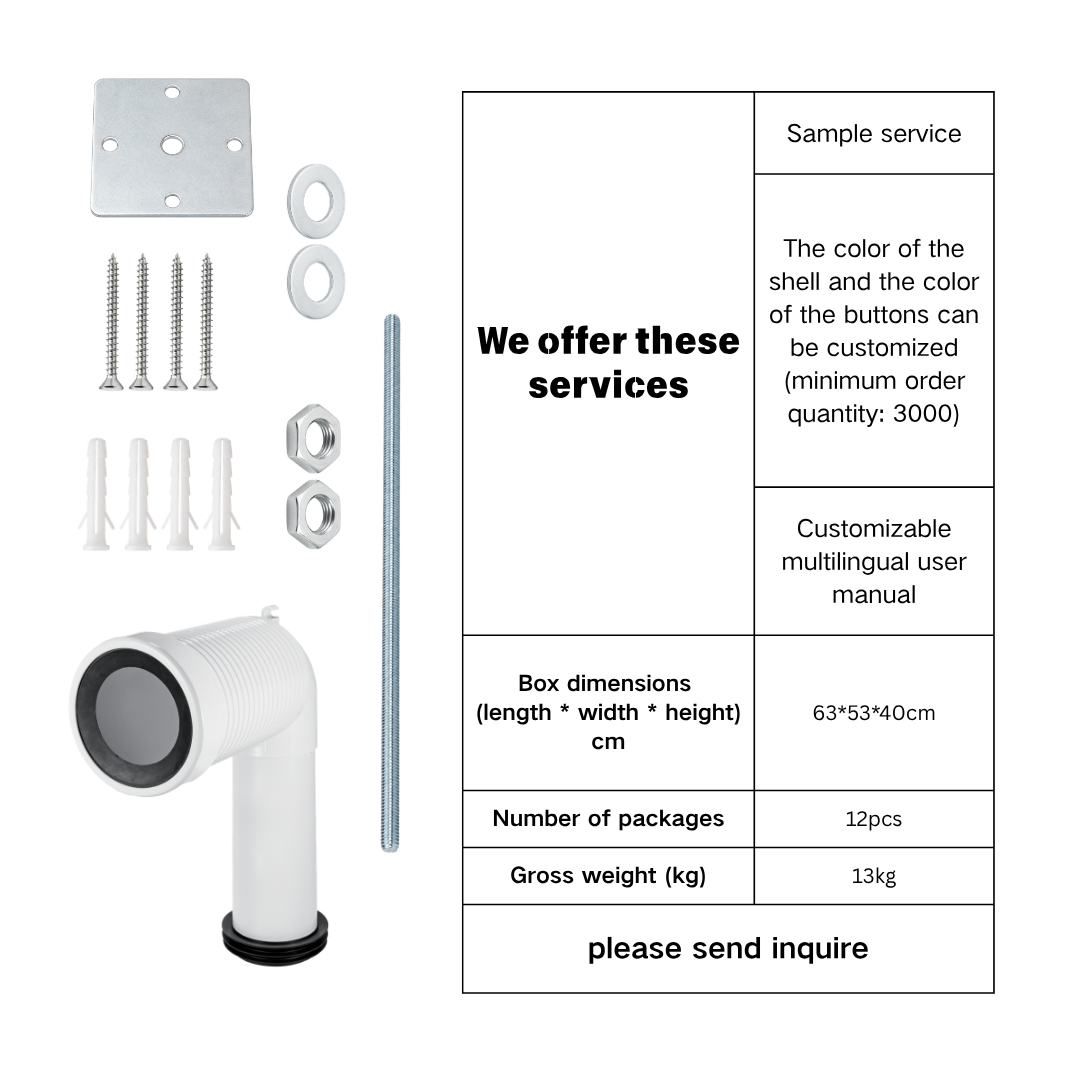

| Packing information | Supplied data |
| Carton dimensions | 63 × 53 × 40 cm |
| Quantity per carton | 12 pcs |
| Gross weight | 13 kg |
Sample service and multilingual instruction manual customization are available. Contact us to discuss your sample and documentation requirements.
Please share the toilet model or outlet drawing, toilet outlet diameter and centre height, floor waste internal diameter, wall-to-waste centre distance, and required quantity. These details help us check whether the T3322 suits your installation and prepare a quotation.
| Delivery Time: |
≤ 2000 pcs / 25 days ≤ 5000 pcs / 35 days > 5000 pcs / negotiate |
| Sample Service | Yes |
| Supply Ability | 200000 pcs / month |
PRODUCT ADVANTAGES
1. Proven Performance Across Multiple Markets
Our product has been successfully sold in multiple countries and markets. Over the years, we have continuously iterated and upgraded it based on market feedback to address various challenges, such as high water temperatures, high water pressure, and poor water quality. Today, the product is highly mature and stable. Using our product to expand your business can effectively reduce customer complaints and improve customer satisfaction.
2. Comprehensive Customization Services
We offer customization options including LOGO printing, color selection, and packaging design. For example, we can print your logo on the product surface, apply your exclusive colors to the float and decorative cover, and our professional packaging designers can create market-oriented packaging that enhances your brand presence. We are committed to helping you establish a strong brand influence in your local market.
3. Certified for Global Compliance
This product has already obtained CE, CUPC, and ICC-ES certifications. If your target market requires additional certifications, we can assist you in obtaining the necessary approvals to ensure smooth market entry.
FAQ
What does the T3322 P-trap to S-trap connector do?
It connects a toilet’s horizontal rear outlet to a floor waste pipe. Its 90-degree bend directs the discharge downward, allowing a compatible rear-outlet toilet to connect to a floor drainage arrangement.
Will this connector fit any rear-outlet toilet or floor drain?
Compatibility must be checked against the toilet and drain dimensions. Provide the toilet outlet diameter and centre height, floor waste internal diameter, wall-to-waste centre distance, and available rear clearance. The dimensions shown do not establish universal compatibility or a confirmed adjustment range.
What mounting parts are included, and does the kit fix the toilet itself?
The kit includes a connector mounting plate, threaded rod, two washers, two nuts, four screws and four wall plugs. These components support the connector; the toilet needs its own fixing system. The installer should also confirm that the supplied wall fixings suit the mounting surface.
