The U7010 is a urinal flushing outlet that directs incoming flush water into a compatible ceramic bowl. Positioned on the upper inside surface of the urinal, its fan-shaped head guides water down the bowl. Previously supplied to the Korean market, this component is available for distributors and maintenance buyers seeking a matching replacement spout.
Numéro d'article :
U7010Garantie :
1Commande (MOQ) :
100Port d'expédition :
XiamenService personnalisé :
Color, Package, LOGOPRODUCT DESCRIPTION
Product Name: Urinal Flush Outlet with Fan-Shaped Spout – U7010
Water delivery inside the bowl

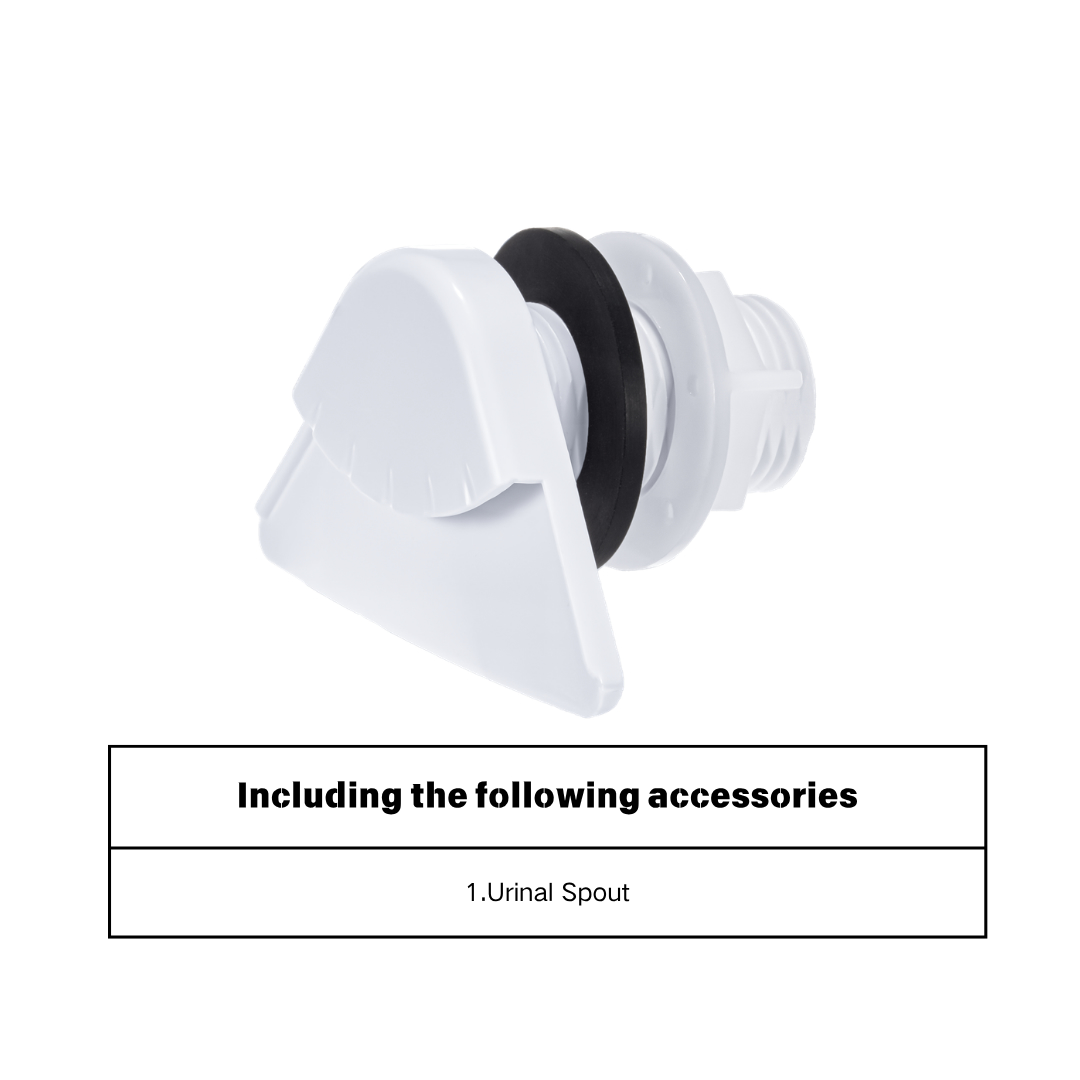

Designed as a urinal flush outlet for ceramic bowls, the U7010 connects to the flushing water supply through the ceramic fixture. Its visible white head sits inside the bowl, while the threaded body extends through the mounting opening. The assembly shown includes the outlet head, threaded body, black sealing gasket and retaining nut.
A component to compare when replacing an existing spout
When sourcing a replacement urinal spout for restroom maintenance, compare the original part with the U7010 from both the front and the connection side. Its 68 mm head width and distinctive outlet shape provide useful identification points. Replacement suitability also depends on the mounting opening, ceramic profile, available space and water connection.

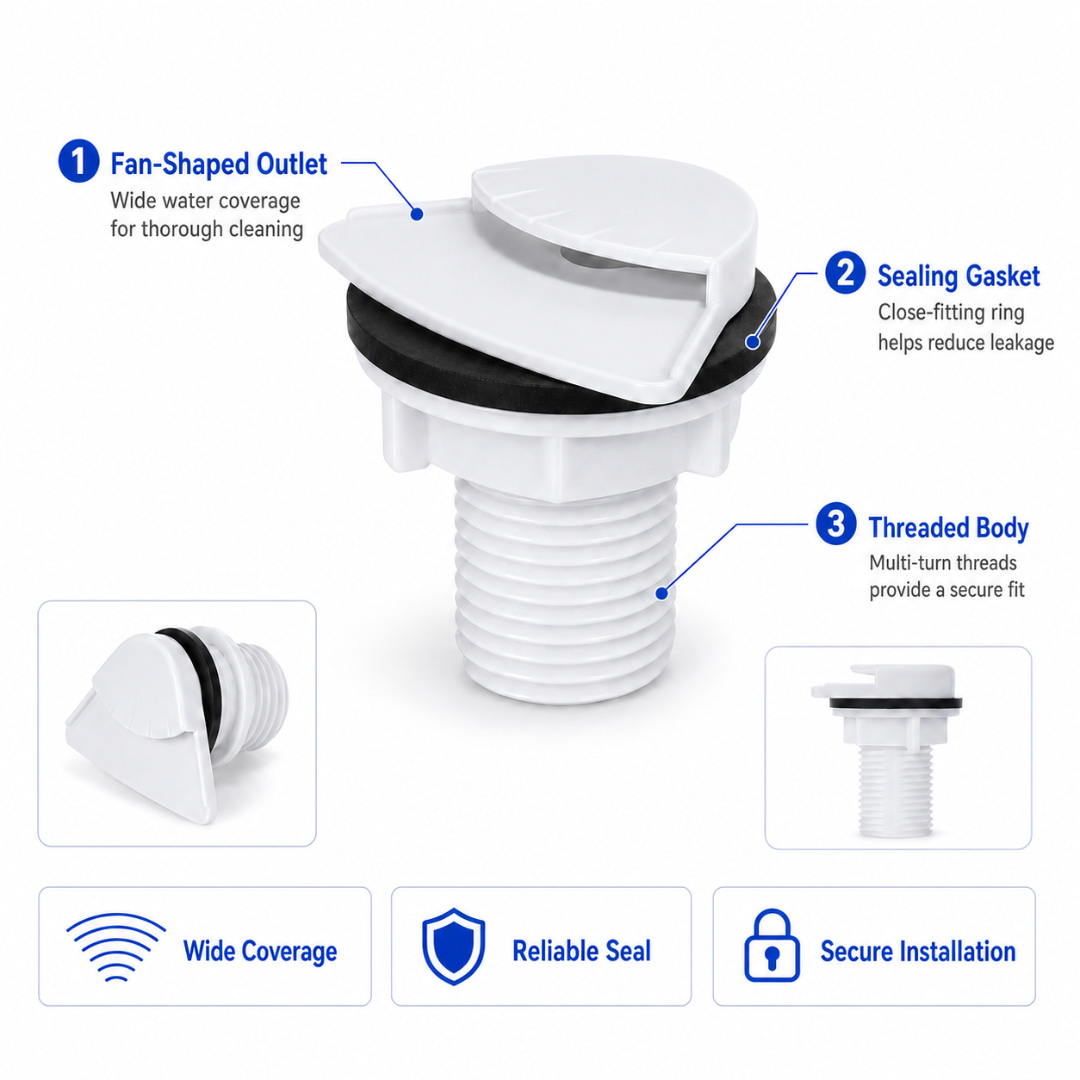

Fan-shaped outlet head

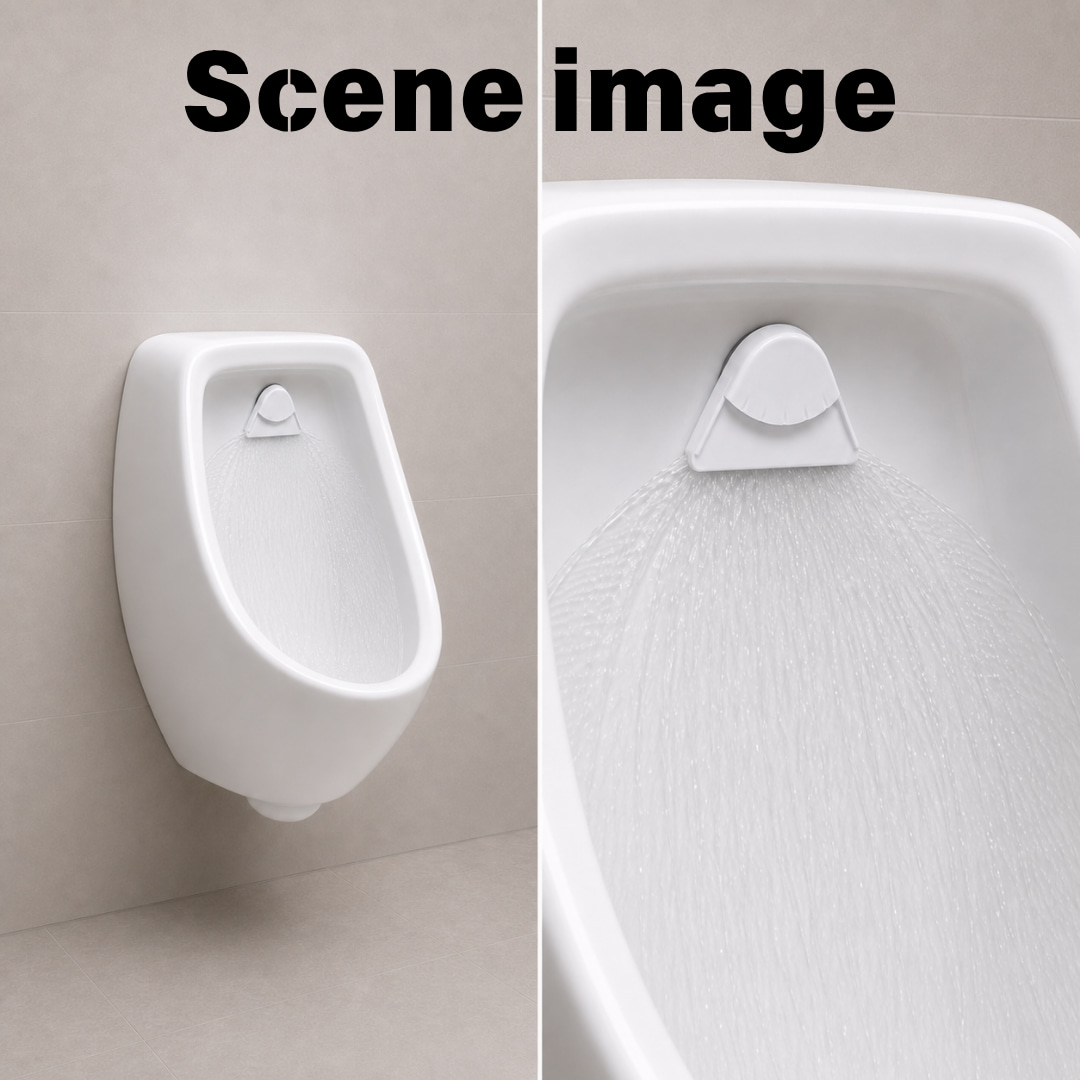

For buyers evaluating a urinal flush spreader for commercial washrooms, the U7010 features a broad outlet lip that guides water toward the bowl surface. Actual water distribution depends on the urinal geometry and flushing supply, so the application illustration should be used to understand the intended position and function.

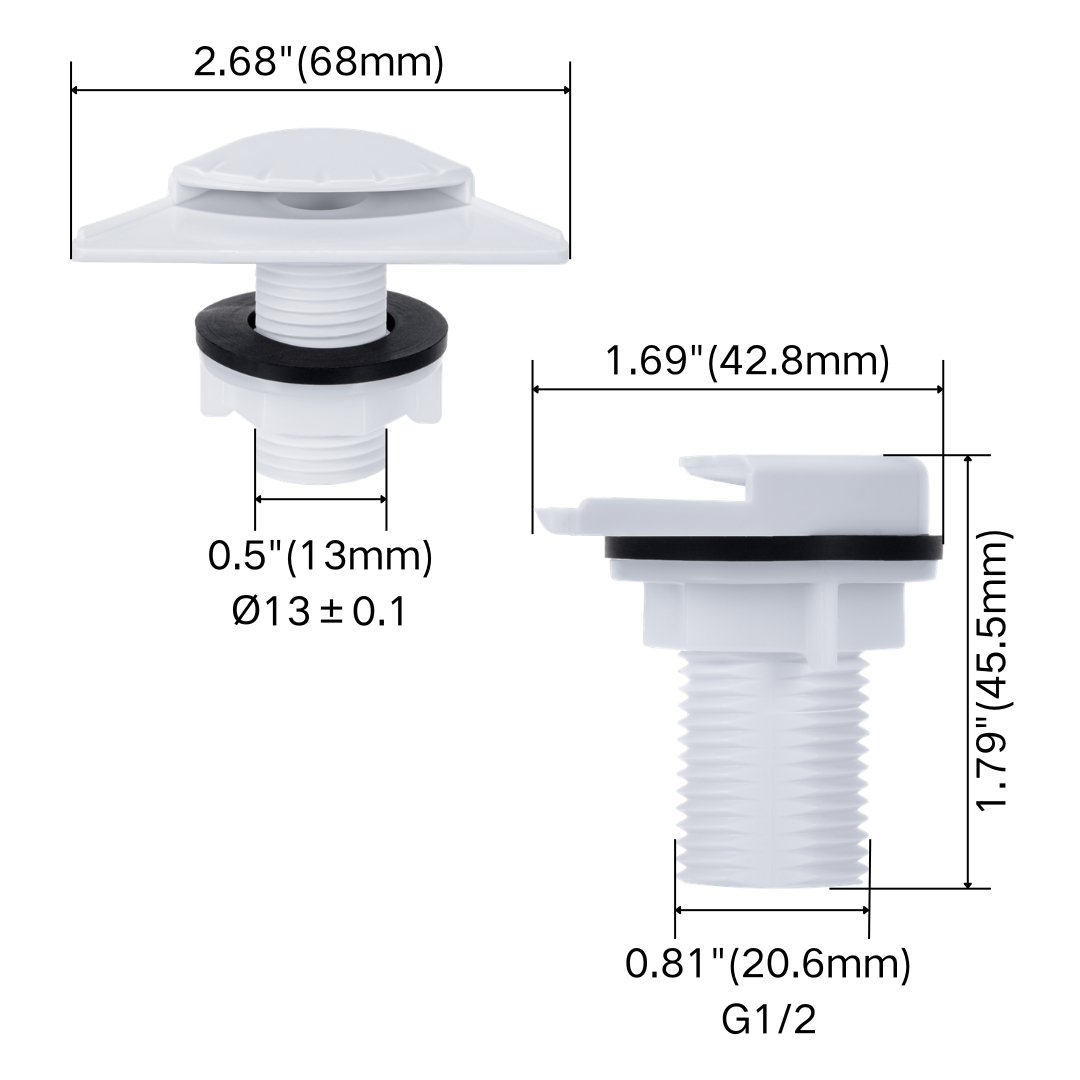

Dimensions for fit checking
For teams selecting a urinal spout for repair contractors, the following dimensions provide a starting point for comparison.
| Item | Specification shown |
| Product reference | U7010 |
| Outlet head width | 68 mm |
| Front-to-back dimension | 42.8 mm |
| Overall height | 45.5 mm |
| Connection thread | G1/2 external thread |
| Thread outside diameter shown | Approximately 20.6 mm |
| Visible finish | White body with black gasket |
Check the mating thread, mounting-hole dimensions, ceramic thickness, sealing surface and outlet orientation before ordering. Matching the thread designation alone does not establish compatibility.
Sourcing for replacement-part ranges
We previously supplied this urinal flushing outlet for sanitary ware distributors serving the Korean market. Buyers serving other markets can submit an existing sample, urinal model information or installation photographs for comparison. The country of origin of a ceramic urinal alone is insufficient to confirm that it uses this outlet.
Samples and packing
When evaluating this urinal flush outlet for bulk purchasing, request a sample for a fit and flushing check on the intended ceramic model.

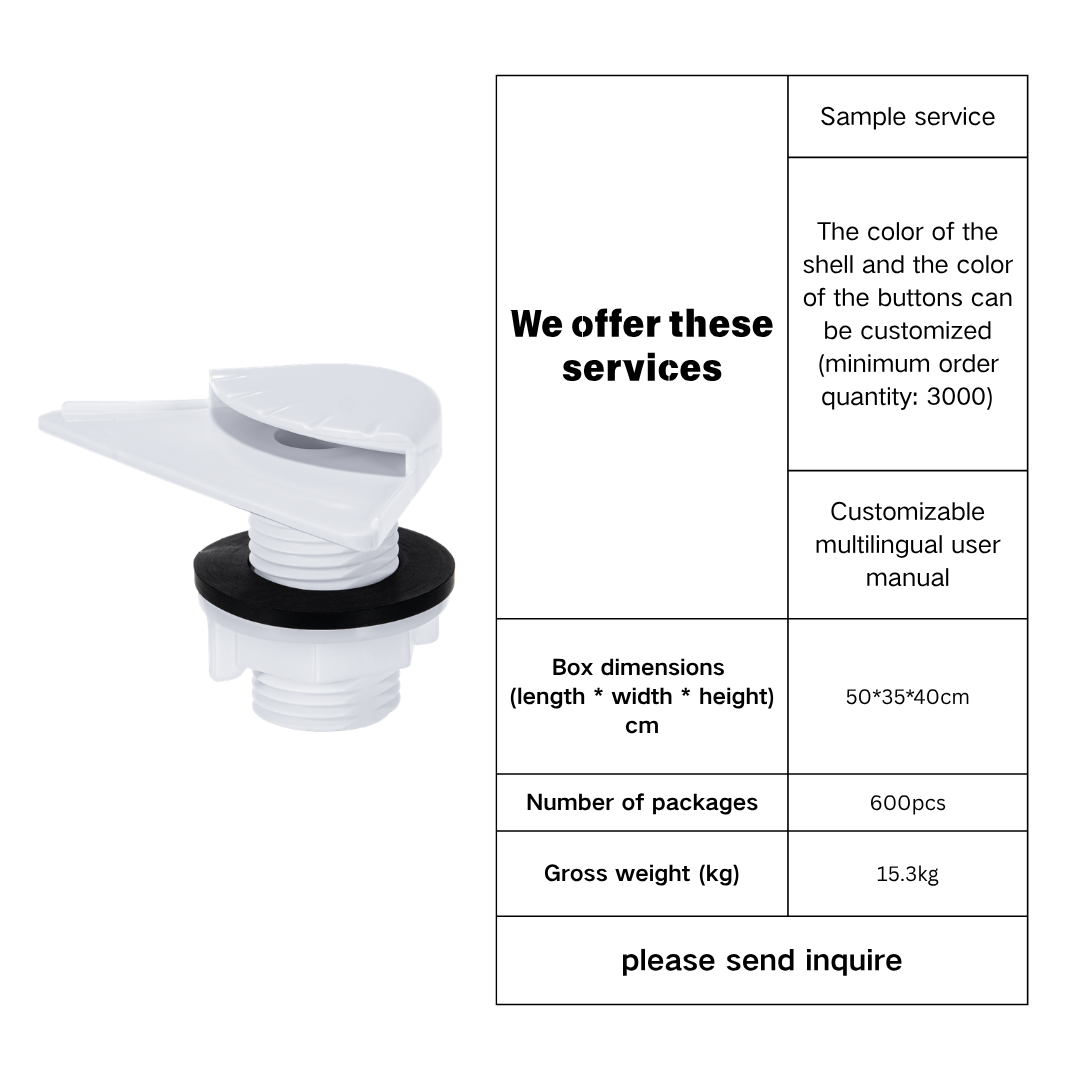

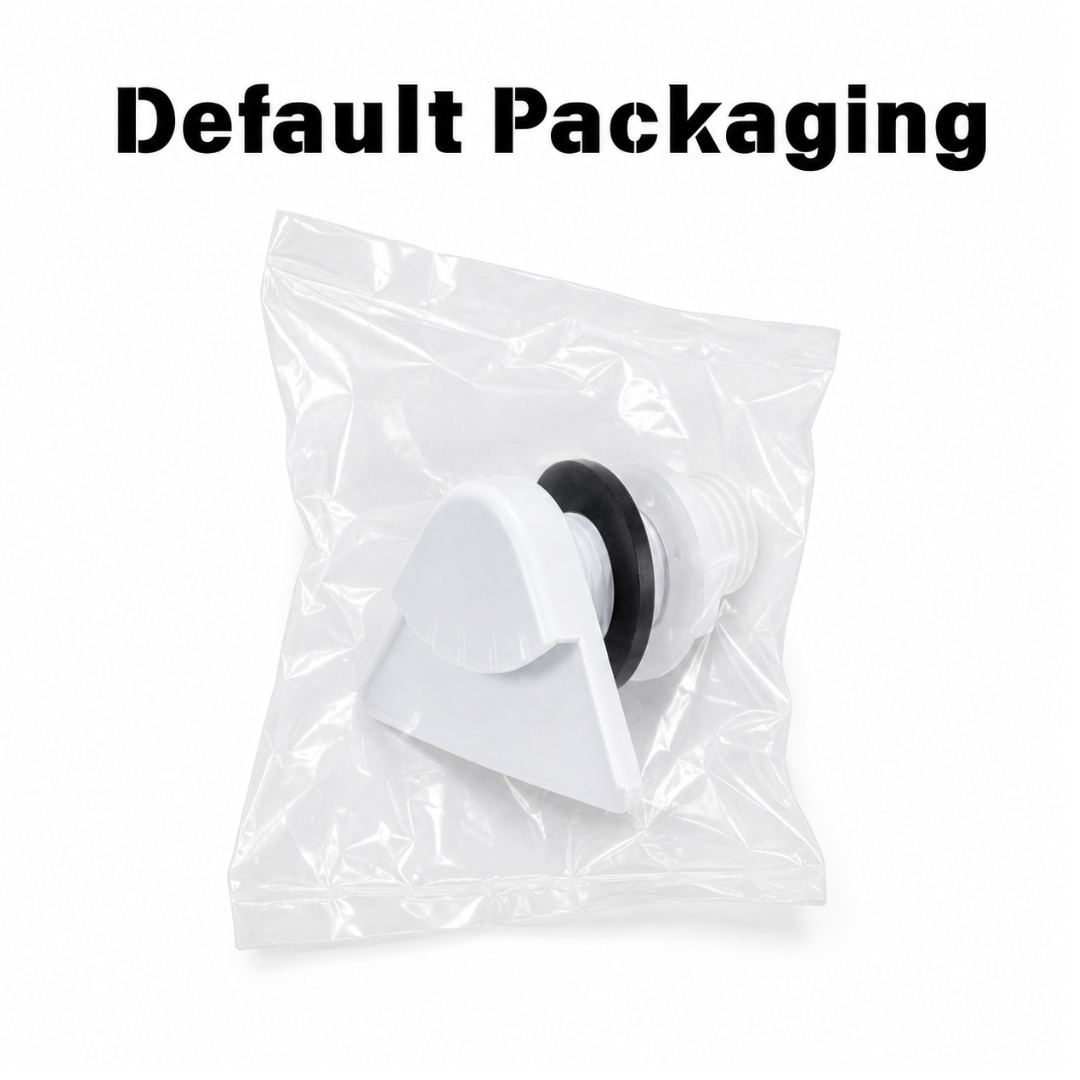

The illustrated standard packaging is an individual clear plastic bag. The supplied packing information lists 600 pieces per carton, carton dimensions of 50 × 35 × 40 cm and a gross weight of 15.3 kg. Confirm packing details for the quoted order.
Send your original spout photographs, key dimensions and required quantity to inquire about U7010 supply.
| Delivery Time: |
≤ 2000 pcs / 15 days ≤ 5000 pcs / 20 days > 5000 pcs / negotiate |
| Sample Service | Yes |
| Supply Ability | 200000 pcs / month |
PRODUCT ADVANTAGES
1. Proven Performance Across Multiple Markets
Our product has been successfully sold in multiple countries and markets. Over the years, we have continuously iterated and upgraded it based on market feedback to address various challenges, such as high water temperatures, high water pressure, and poor water quality. Today, the product is highly mature and stable. Using our product to expand your business can effectively reduce customer complaints and improve customer satisfaction.
2. Comprehensive Customization Services
We offer customization options including LOGO printing, color selection, and packaging design. For example, we can print your logo on the product surface, apply your exclusive colors to the float and decorative cover, and our professional packaging designers can create market-oriented packaging that enhances your brand presence. We are committed to helping you establish a strong brand influence in your local market.
3. Certified for Global Compliance
This product has already obtained CE, CUPC, and ICC-ES certifications. If your target market requires additional certifications, we can assist you in obtaining the necessary approvals to ensure smooth market entry.
FAQ
Where is the U7010 installed, and what does it do?
The outlet head sits on the upper inside surface of a compatible ceramic urinal. It receives water from the flushing supply and directs it down into the bowl. The threaded body, gasket and retaining nut form the mounting assembly.
Will it fit my existing urinal?
Fit must be checked against the original outlet and ceramic fixture. Compare the G1/2 connection, mounting opening, ceramic thickness, sealing surface, head dimensions and available clearance. Similar appearance or Korean manufacture of the urinal does not establish compatibility.
Can I request a sample before ordering replacement stock?
Yes, sample service is available. Send photographs of the existing spout, its connection and installation position, together with relevant measurements. Use the sample to check mounting fit, sealing and flushing performance on the intended urinal before placing a bulk order.
