The U7015 urinal outlet connection kit brings together a slotted mounting plate, two rubber sealing components and paired fixing accessories for compatible wall-hung urinal connections. Its elongated slots provide positioning adjustment, while white domed caps cover the fixing ends. For sanitary ware buyers and installation teams, the component drawings provide a practical starting point for checking fit before ordering.
Numéro d'article :
U7015Garantie :
1Commande (MOQ) :
100Port d'expédition :
XiamenService personnalisé :
Color, Package, LOGOPRODUCT DESCRIPTION
Product Name: Urinal Outlet Connection Kit with Slotted Mounting Plate – U7015
Slotted plate for connection alignment
For buyers selecting a wall-hung urinal outlet connection kit, U7015 combines a central outlet with two elongated fixing slots in a single white plate. The slots allow adjustment along their length to help align compatible fixing positions. Reinforcing ribs are visible on the underside of the plate.

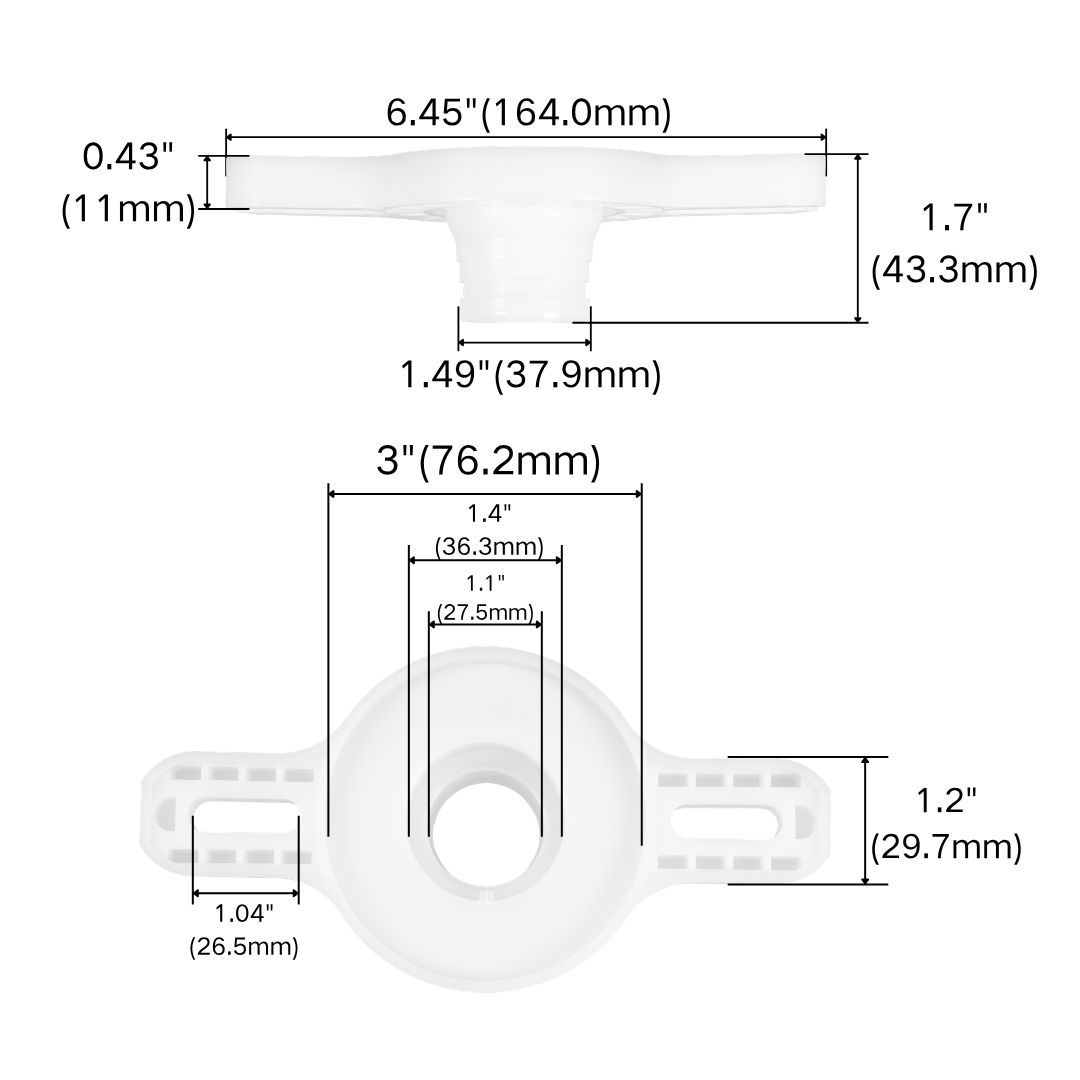

The plate measures 164 mm overall in length and 43.3 mm in overall depth. Each slot has a marked length of 26.5 mm; this measurement does not establish the supported fixing centre range.
Two separate sealing components
When assessing a urinal outlet seal kit for washroom maintenance, compare both supplied rubber components with the existing connection. U7015 includes a stepped, multi-rib outlet seal and a larger ring gasket, giving buyers two distinct sealing profiles to check against the fixture and drain interface.

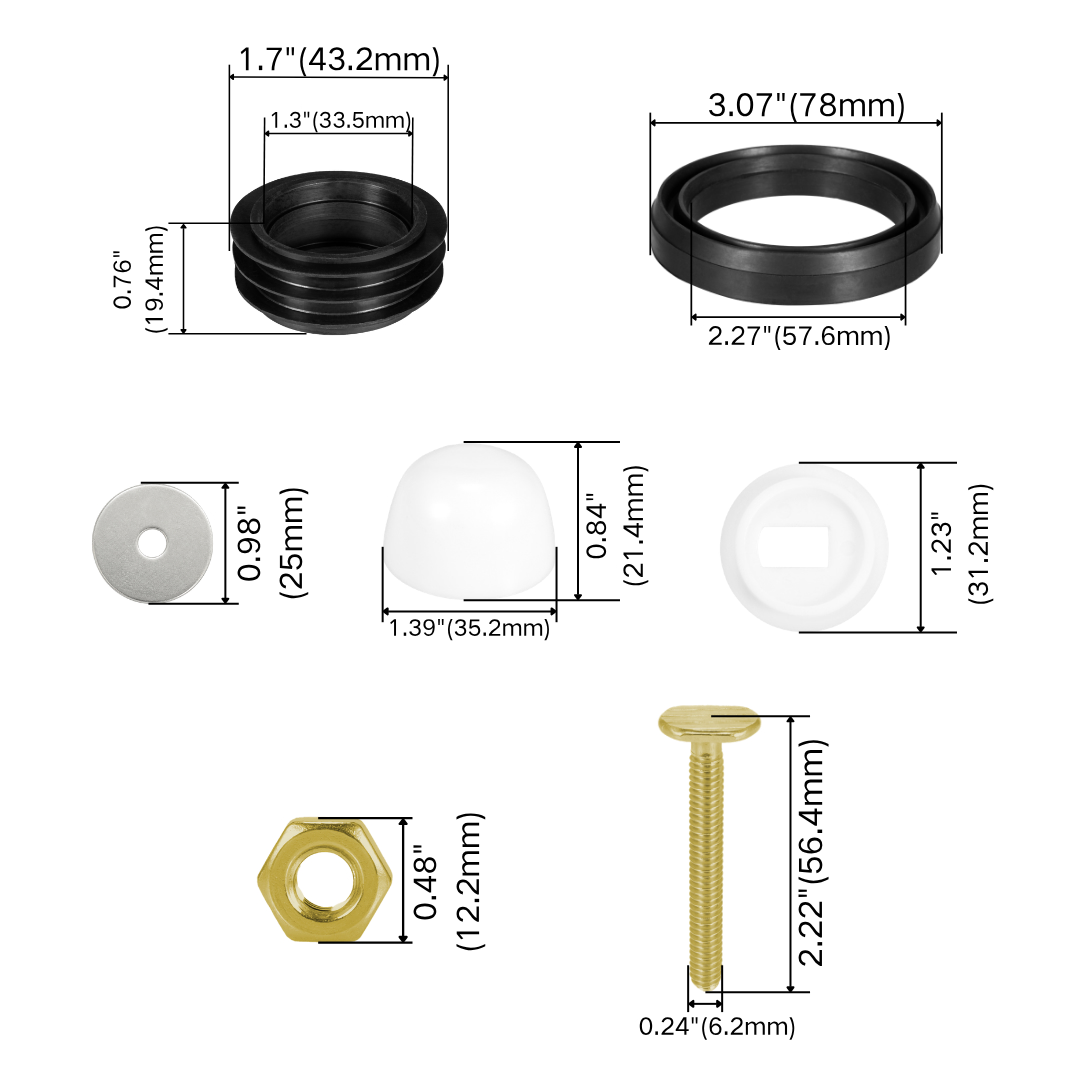

The smaller seal is marked 43.2 mm in outside diameter, 33.5 mm in inside diameter and 19.4 mm in height. The larger gasket is marked 78 mm in outside diameter and 57.6 mm in inside diameter. Correct fit also depends on the mating surfaces and required seal compression.
Fixing accessories supplied together

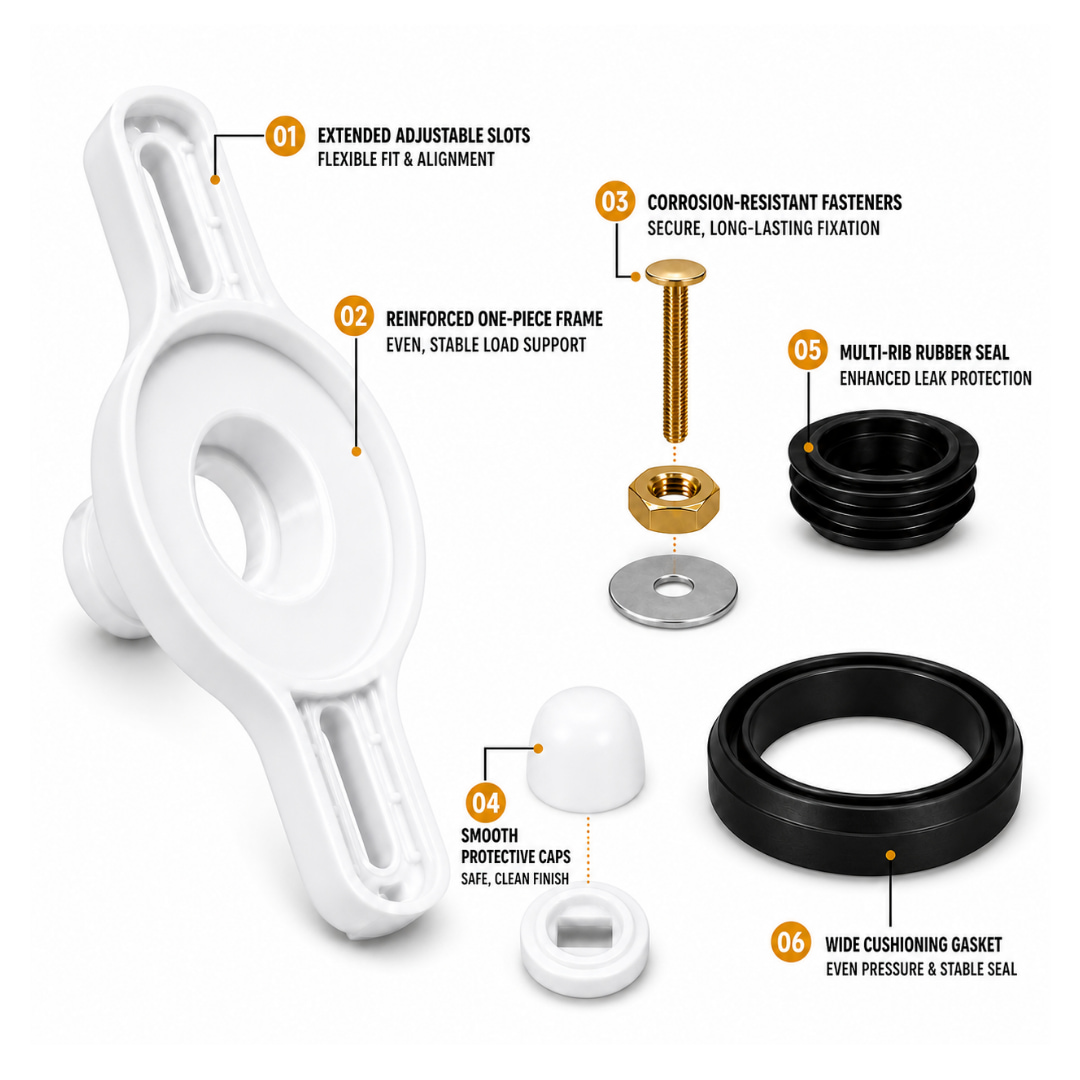

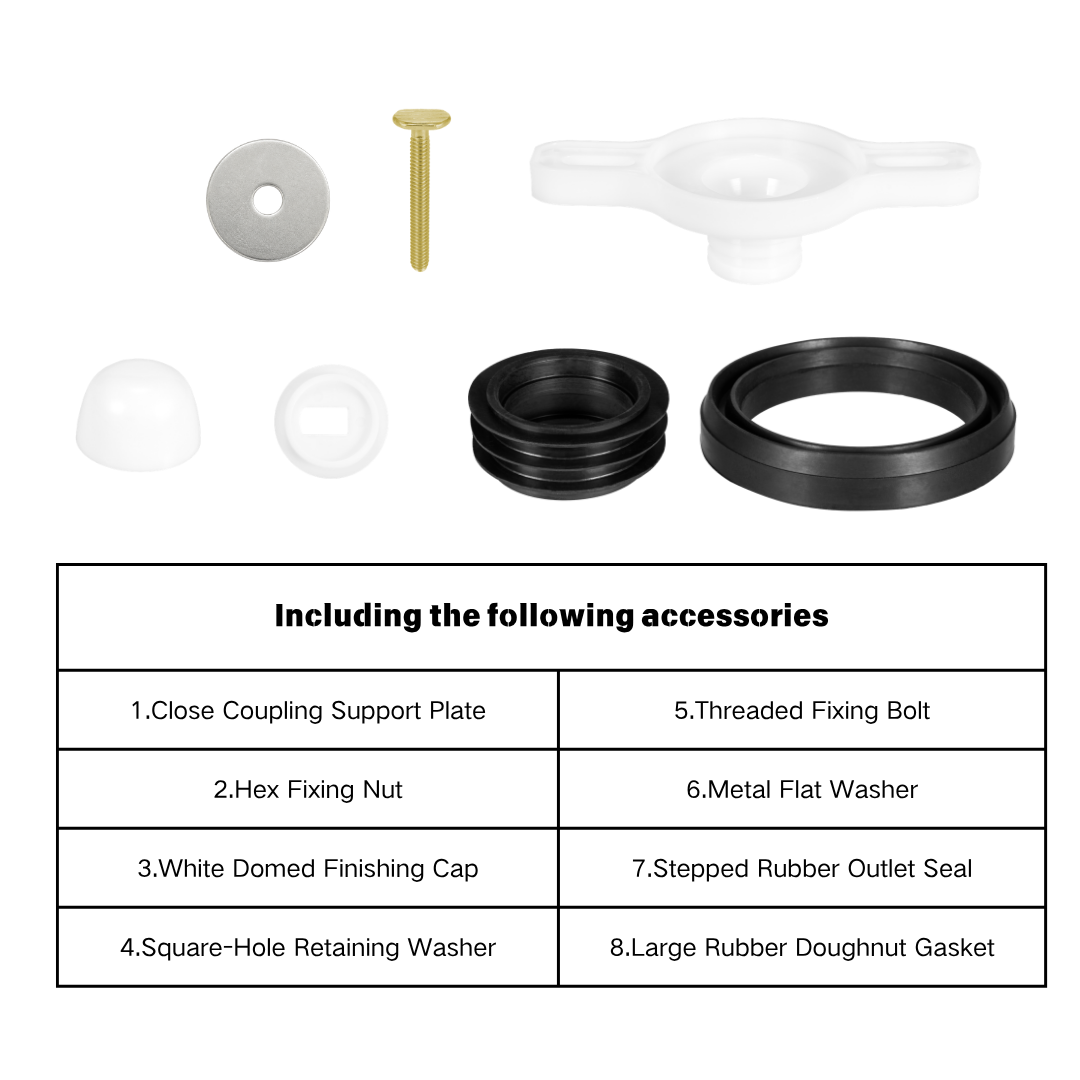

As a urinal fixing kit for bathroom renovation, U7015 groups the connection parts and fixing accessories in one package. The illustrated kit contains:
One slotted mounting plate with a central outlet
One stepped rubber outlet seal
One large rubber ring gasket
Two fixing bolts and two hex nuts
Two metal flat washers
Two white square-hole retaining washers
Two white domed finishing caps
The bolts are marked 56.4 mm long with a 6.2 mm shaft diameter. Confirm the required thread specification separately when matching replacement hardware.
Dimensions for project selection
For a urinal drain connector for commercial restroom projects, check the ceramic outlet, wall drain opening, fixing positions and available clearance before approval. The plate drawing shows a 37.9 mm outside dimension at the outlet spigot and a 27.5 mm central opening.
These component measurements help narrow selection, but do not establish compatibility with a particular urinal brand or model. Provide fixture drawings or a sample for a more complete fit assessment.
Replacement assessment
Buyers evaluating a urinal mounting plate kit for replacement work can use the component views to compare the plate profile, seal shapes and fixing arrangement with the removed assembly. Check how the outlet and both seals engage with the existing fixture before choosing a replacement. Overall plate length alone is insufficient to confirm suitability.

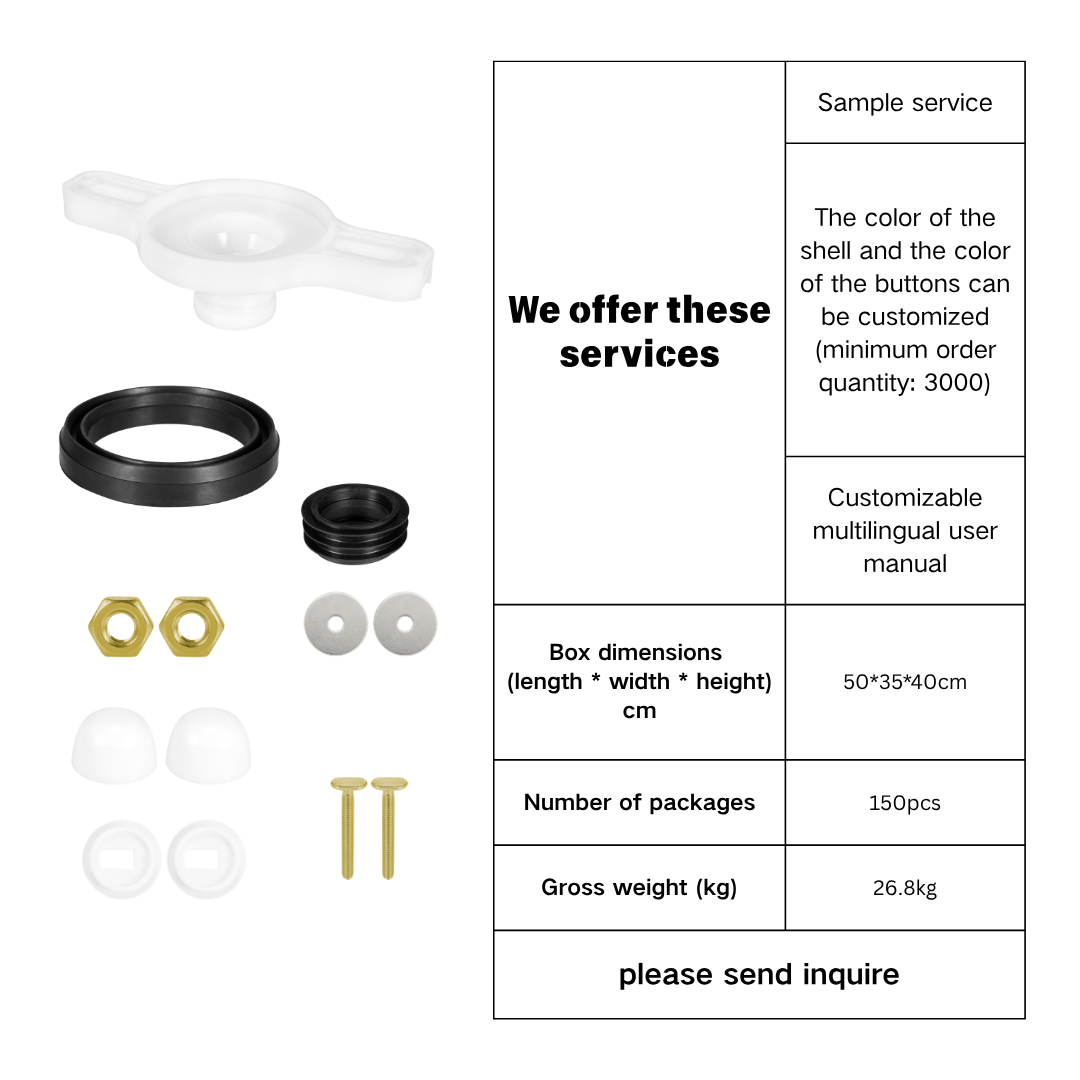

Samples and packaging

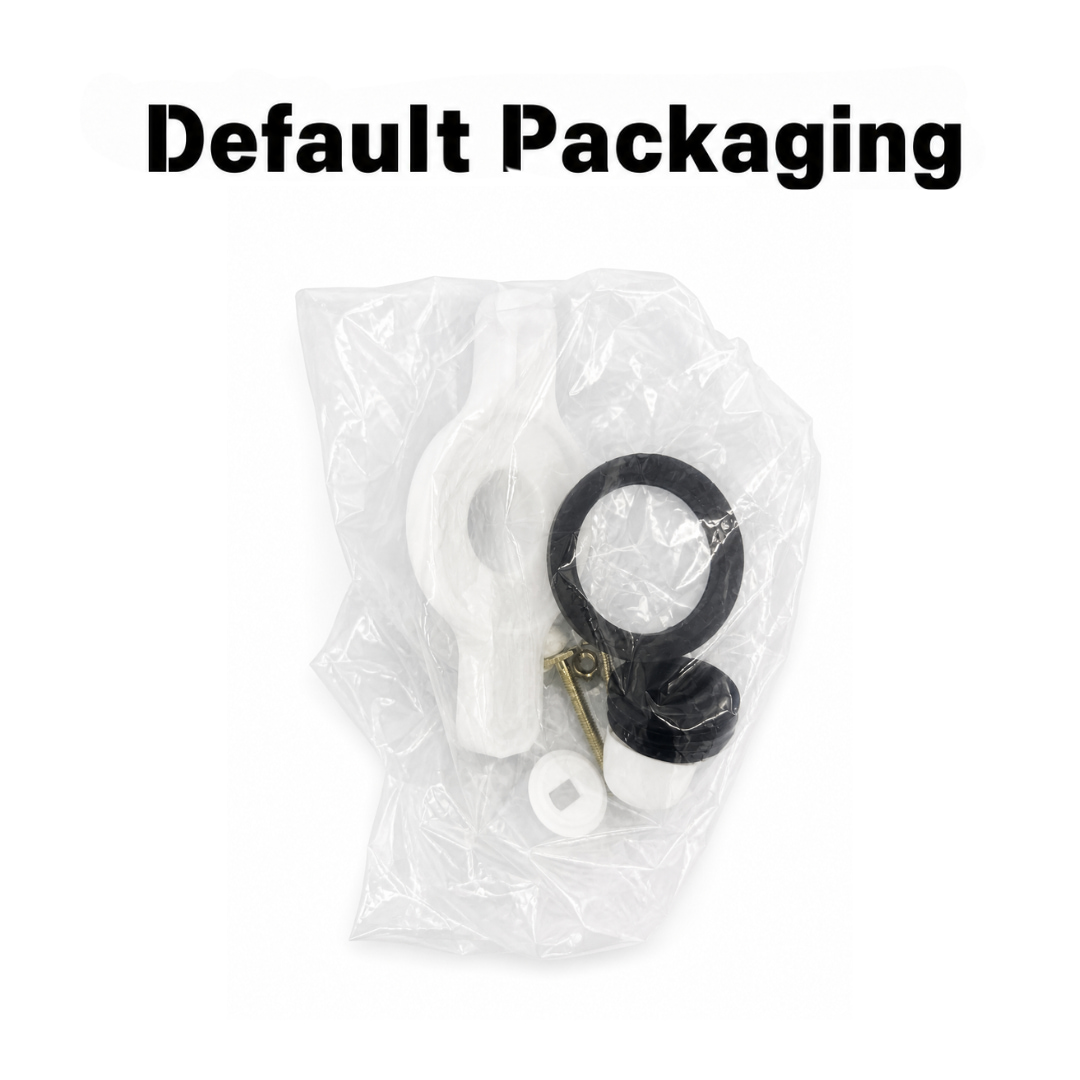

For procurement teams comparing a urinal connection kit for sanitaryware sourcing, sample service is available for initial evaluation. Standard packaging shown is a clear plastic bag containing the connection parts and fixing accessories. Customizable multilingual user manuals are also listed among the available services.
Send your fixture dimensions, intended order quantity and instruction-language requirements with your inquiry. Confirm carton quantity, gross weight and final packing specifications when requesting a quotation.
| Delivery Time: |
≤ 2000 pcs / 15 days ≤ 5000 pcs / 20 days > 5000 pcs / negotiate |
| Sample Service | Yes |
| Supply Ability | 200000 pcs / month |
PRODUCT ADVANTAGES
1. Proven Performance Across Multiple Markets
Our product has been successfully sold in multiple countries and markets. Over the years, we have continuously iterated and upgraded it based on market feedback to address various challenges, such as high water temperatures, high water pressure, and poor water quality. Today, the product is highly mature and stable. Using our product to expand your business can effectively reduce customer complaints and improve customer satisfaction.
2. Comprehensive Customization Services
We offer customization options including LOGO printing, color selection, and packaging design. For example, we can print your logo on the product surface, apply your exclusive colors to the float and decorative cover, and our professional packaging designers can create market-oriented packaging that enhances your brand presence. We are committed to helping you establish a strong brand influence in your local market.
3. Certified for Global Compliance
This product has already obtained CE, CUPC, and ICC-ES certifications. If your target market requires additional certifications, we can assist you in obtaining the necessary approvals to ensure smooth market entry.
FAQ
Will U7015 fit any wall-hung urinal?
Compatibility must be checked against the specific fixture. Compare the ceramic outlet, drain opening, fixing positions, sealing surfaces and available clearance with the U7015 drawings. The slotted plate provides adjustment, but does not establish universal fit.
Which parts are included in the kit?
The illustrated kit includes one mounting plate, one stepped rubber outlet seal, one large rubber gasket, and two each of the fixing bolts, hex nuts, metal flat washers, white retaining washers and domed finishing caps.
Can I request a sample and multilingual instructions?
Sample service and customizable multilingual user manuals are available. Include your fixture details, required languages and expected quantity in your inquiry so the sample and documentation requirements can be confirmed.
WHY CHOOSE US?
1.Market Experience
Since 2004, we have been deeply engaged in the replacement and repair market. Our products have been tested by the market and continuously improved through multiple iterations. By choosing our products to expand your business, you can effectively avoid customer complaints.
2.Quality Guarantee
We adhere to high manufacturing standards, ensuring that every product undergoes rigorous testing for durability and compatibility. With our 3 years warranty, you can trust in the long-term reliability of our products, providing peace of mind for your business.
3.R&D Ability
We have our own product designers and packaging designers who can help you quickly develop and improve products to meet the needs of your local market. This ensures that your business gains recognition and success in your target market.
4.Customer Support
We assign a dedicated salesperson to each customer, providing market consultation in the early stages, detailed confirmation during production, and follow-up support after shipment. Our goal is to support your business at every step, ensuring a smooth and successful operation.
